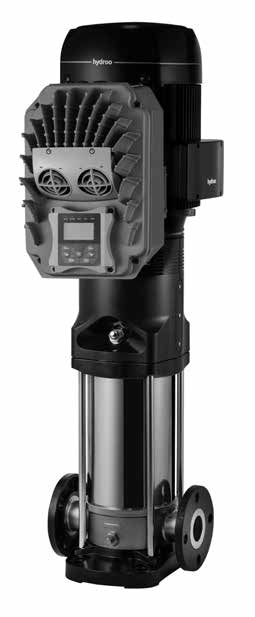

Vertical multistage stainless steel Pump

VF/ VX Series

Applications

Cooling water systems / Municipal Water supply and boosting /Domestic water supply / Irrigation / General Irrigation / General Industrial Services / Washing plants / Boiler feed and condensate systems / water treatment plants

Performance range

Flow range: up to 240 m3/h

Head: up to 305 m

Temperature: up to +120 ºC

Speed: 2900 rpm or 3500 rpm Standard motor IE3-IE4 available on request. Power: up to 110 kW

Operation conditions

Clean, non-flammable and non explosive liquids temperature: -15 ºC to +120 ºC Ambient temperature: up to +40 ºC Low NPSH version High temperature version up to 180ºC

Material

Cast Iron, Bronze, AISI304 SS

Why Choose This Pump

Vertical multistage stainless steel pumps provide high pressure, compact installation, and excellent efficiency.
Their vertical design saves space while ensuring stable operation, corrosion resistance, and reliable performance for water supply, boosting, and industrial applications.
