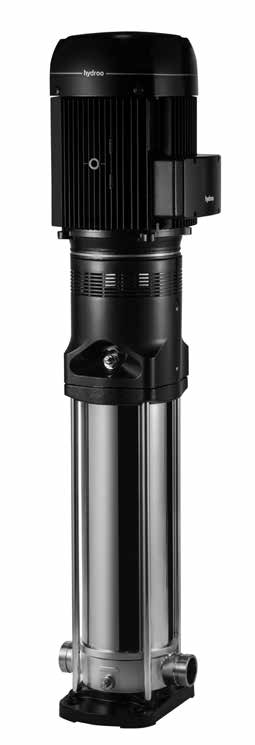

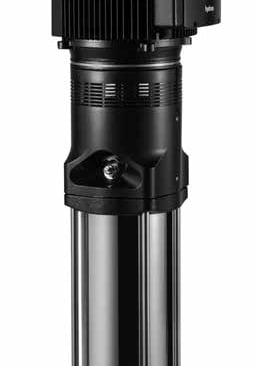

Hydroo vertical multistage stainless steel customized Pump

VN/VD Series

Applications

Municipal water supply / General industrial services / Water Treatment / RO Systems / Ultrafiltration

Performance range

Flow range: up to 240 m3/h (VD from 25-240 m3/h)

Head: up to 305 m

Temperature: up to +120 ºC

Speed: 2900 rpm or 3500 rpm

Power: up to 110 kW

Standard motor IE3.

IE4-IE5 available on request

Operation conditions

Clean, non-flammable and non-explosive liquid

Salty water allowed

Liquid temperature: -15 ºC to +120 ºC

Ambient temperature: up to +40 ºC

Material

AISI316 SS, AISI904 SS, Duplex
