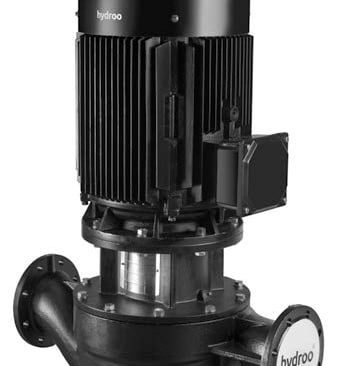

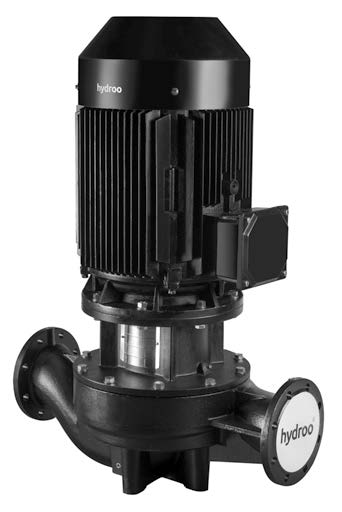

Vertical in-line circulation pump

TX/TF Series

Applications

Cooling water / Water supply / Irrigation / General industrial services / Boosting

Performance range

Flow range: up to 750 m3/h

Head: up to 90 m

Temperature: up to +110 ºC

Speed: 1450/2900 rpm or 1750/3500 rpm

Power: up to 132 kW

Standard motor IE3. IE4-IE5 available on request

Operation conditions

Clean, non-flammable and non-explosive liquid

Material

Cast Iron, AISI304 SS
