Packaged Firefighting sets

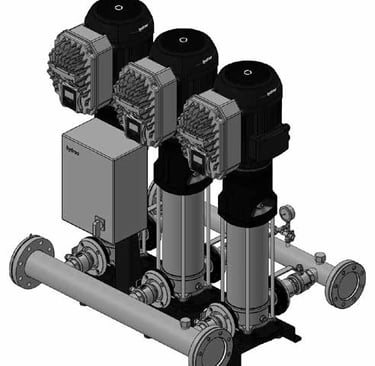

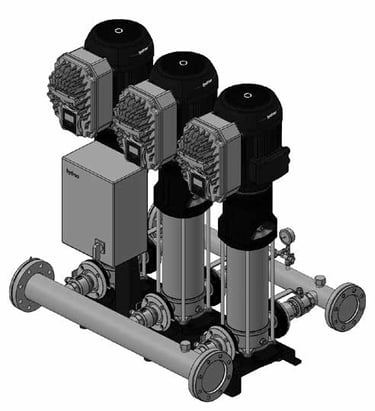

XBOOST Series

Applications

Water supply for residential & commercial buildings / Garden irrigation / Water supply for industrial uses

Performance range

Flow range: up to 1440 m3/h

Head: up to 305 m

Temperature: up to +120 ºC

Speed: 2900 rpm or 3500 rpm

Size: up to 4 pump units as standard.

Standard motor IE3. IE4-IE5 available on request

Operation conditions

Clean, non-flammable and non-explosive liquid

Liquid temperature: -15 ºC to +120 ºC

Ambient temperature: up to +40 ºC

Material

Cast Iron, AISI304 SS, AISI316 SS
