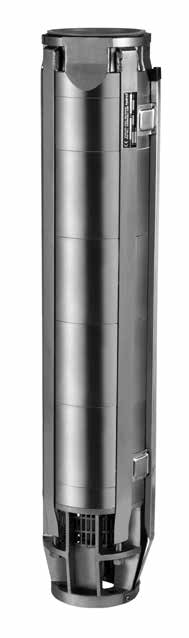

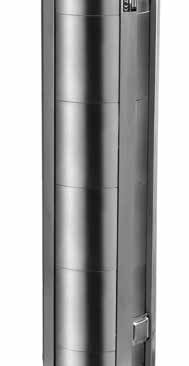

Stainless steel submersible pump 4”, 6”, 8”, 10”, 12”

SX/SN/SD Series

Applications

Water supply from deep wells and dams / Irrigation / Sprinkling and boosting / Fire-fighting applications / Washing systems / Mining

Performance range

Flow range: up to 540 m3/h

Head: up to 450 m

Temperature: up to +50 ºC

Speed: 2900 rpm or 3500 rpm

Power: up to 350 kW

Immersion depth: up to 300 m

Sizes: 4” to 12”

Operation conditions

Clean, non-flammable and non-explosive liquid

Material

AISI304 SS, AISI316 SS, Duplex
