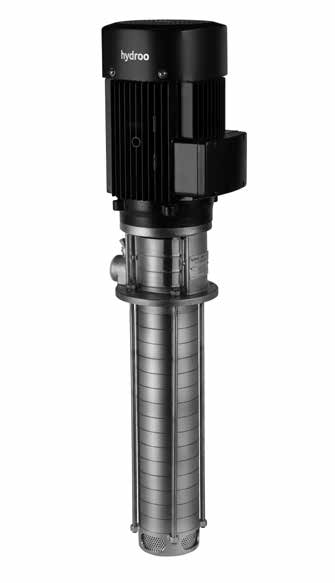

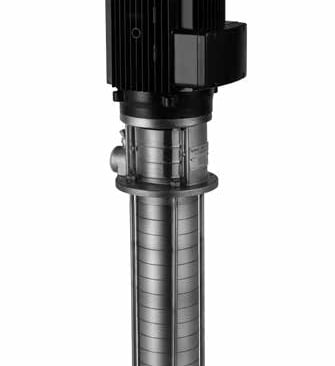

Hydroo immersion type multistage Pump

VKF/VKX/VKN Series

Applications

Machine tools cooling systems / Industrial washing systems / Chiller units / Industrial filtration systems / Other industrial applications

Performance range

Flow range: up to 55 m3/h

Head: up to 305 m

Temperature: up to +120 ºC

Speed: 2900 rpm or 3500 rpm

Power: up to 45 kW

Standard motor IE3. IE4-IE5 available on request

Operation conditions

Clean non-explosive liquid

Coolant fluids and cutting lubricating liquids

Liquid temperature: -15 ºC to +70 ºC

Warm water type: -15 ºC to + 120 ºC

Material

Cast Iron, AISI304 SS, AISI316 SS
