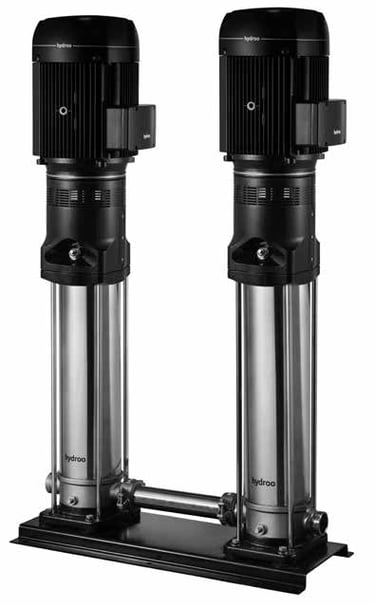

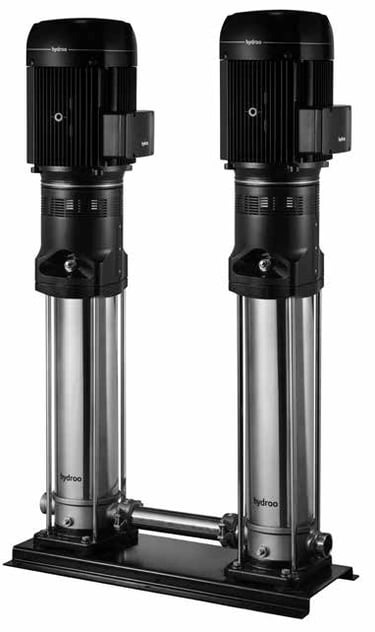

High pressure pump set

VN/VD Series

Applications

Ultrafiltration / RO systems / Booster systems / High pressure flushing systems / water supply / Seawater desalination

Performance range

Flow range: up to 55 m3/h

Head: up to 740 m

Temperature: up to +120 ºC

Speed: 2900 rpm or 3500 rpm

Power: up to 55 kW

Standard motor IE3. IE4-IE5 available on request

Operation conditions

Clean, non-flammable and non-explosive liquid

Salty water allowed

Liquid temperature: -15 ºC to +120 ºC

Ambient temperature: up to +40 ºC

Material

AISI316 SS, AISI904 SS, Duplex
